Brand: Blum
Origin: Austria

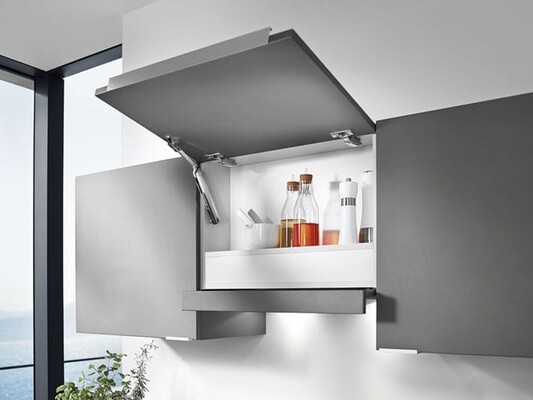

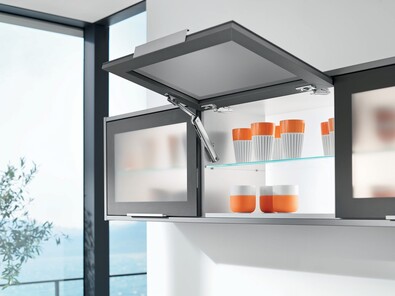

Application: Single over head opening for wooden fronts and aluminum frames, suitable for all particle boards, mdf, foam boards, chipboard, hdf and plywood, doors wider than 1000mm timber or plywood recommended
Hinges to be bought separately.
Sizing:
Power factor = Cabinet height mm x door weight including handle
HK-XS 13 (500-1200)
HK-XS 15 (800-1800)
3 hinges for >900mm or 1800LF
4hinges for 1200mm or 2700LF

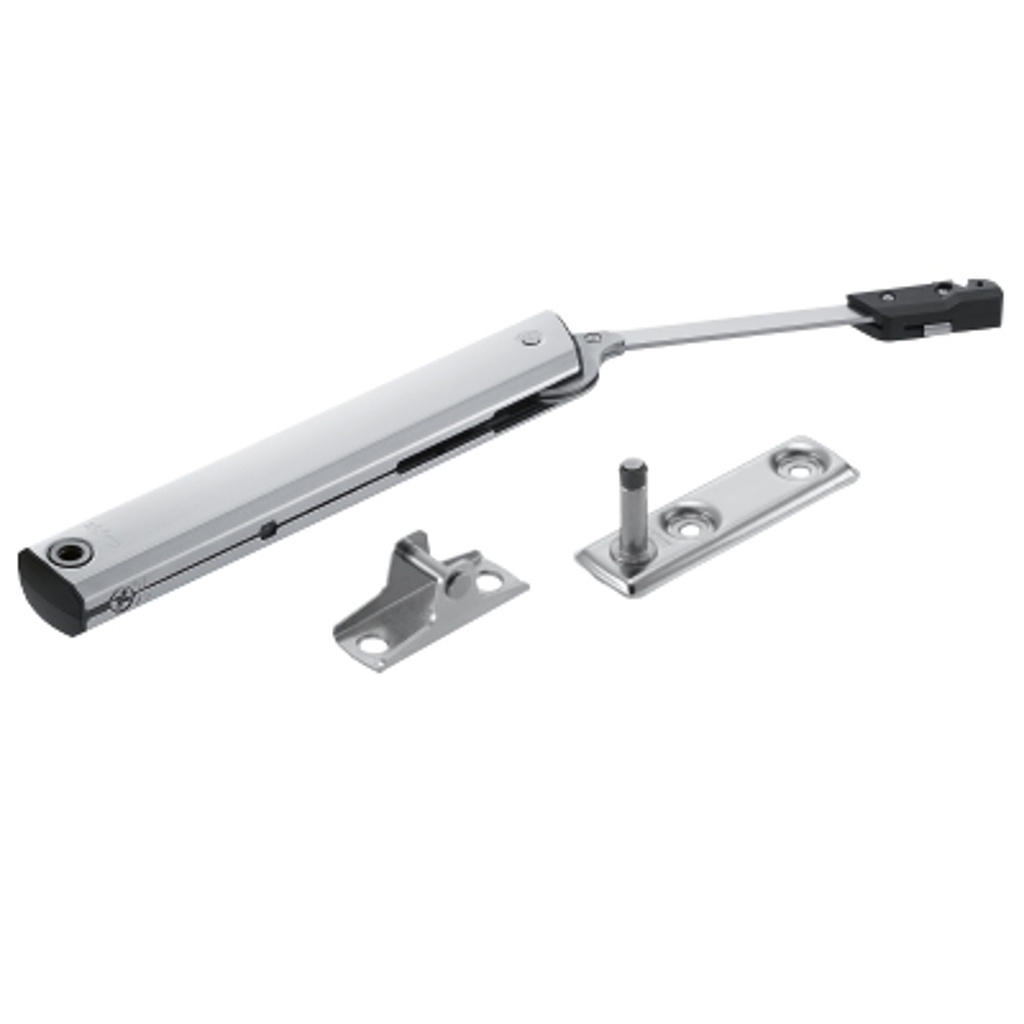

Package contains:
Lift mechanism x1
Cabinet fixing bracket x1
Front fixing bracket x1
Hinges (Purchased separately)
Features:

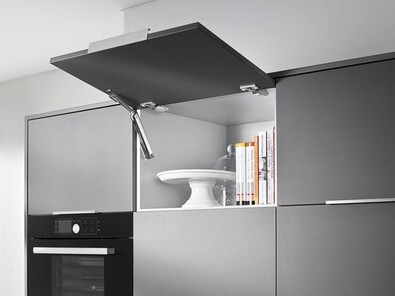

Well suited for low frontal heights over refrigerator
Suitable cabinet height 240-600mm
16-24mm front suitable
Internal cabinet depth min 125mm, 100mm with special drilling position
Variable stop feature
Feather light operating forces
2 dimensional adjustment with hinges

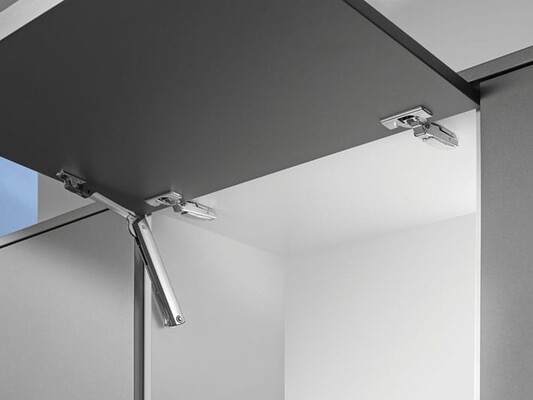

Simple, infinitely variable lift mechanism
Perfect motion with variable stop
Easy assembly and adjustment
Origin: Austria
Application: Single over head opening for wooden fronts and aluminum frames, suitable for all particle boards, mdf, foam boards, chipboard, hdf and plywood, doors wider than 1000mm timber or plywood recommended
Hinges to be bought separately.
Sizing:
Power factor = Cabinet height mm x door weight including handle
HK-XS 13 (500-1200)
HK-XS 15 (800-1800)
3 hinges for >900mm or 1800LF
4hinges for 1200mm or 2700LF
Package contains:
Lift mechanism x1
Cabinet fixing bracket x1
Front fixing bracket x1
Hinges (Purchased separately)
Features:
Well suited for low frontal heights over refrigerator
Suitable cabinet height 240-600mm
16-24mm front suitable
Internal cabinet depth min 125mm, 100mm with special drilling position
Variable stop feature
Feather light operating forces
2 dimensional adjustment with hinges
Simple, infinitely variable lift mechanism
Perfect motion with variable stop
Easy assembly and adjustment
| Power Factor | 13 or 15 |
| Brand | BLUM |
| Origin | Austria |
