BRAND: Raven
ORIGIN: Australia
The Anodised Aluminium Channel with Refrigeration-Type Vinyl Magnetic Strip is designed for double doors, providing an effective meeting stile seal. It securely locks the magnetic strip to prevent movement and eliminates the need for latches, though center latching isn't possible. Compatible with Raven door seals, it features a push-in fit into a 16.5mm x 12mm groove with optional adhesive, suitable for doors with a minimum thickness of 40mm. Available in Silver Anodised color, it ensures reliable sealing with gaps ranging from 5mm to 7mm.
DIMENSIONS
- Length: 2250mm, 3000mm
APPLICATION

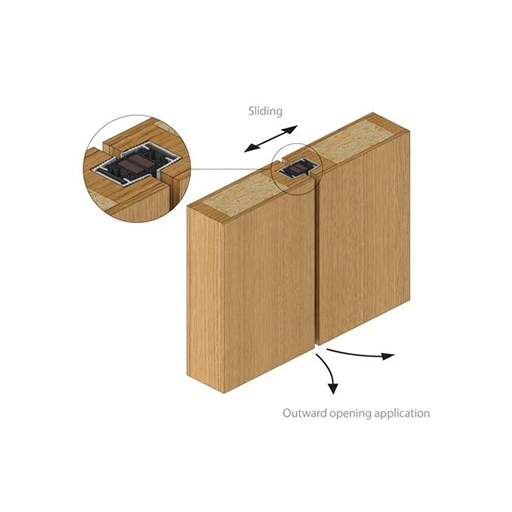

Meeting stile seal (astragal) for double swinging and sliding timber doors, suitable for pivot, sliding, or butt-hinged doors.
MATERIAL
Anodised Aluminium with black PVC gasket and magnet strip
FEATURES
- Refrigeration-type vinyl magnetic strip in an anodised aluminium channel
- Morticed into the stiles of double doors
- Effective meeting stile seal
- Magnetic strip locked in place to prevent creeping
- Sufficient strength to eliminate the need for latches (centre latching cannot be used)
- Can be used with Raven door bottom and perimeter seals

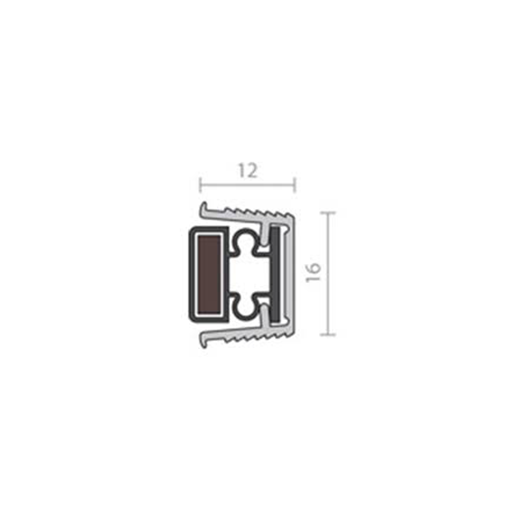

- Push-in locking fit into a 16.5mm x 12mm deep groove with optional adhesive
- Minimum door thickness of 40mm required
- Min/Max Gap: 5mm to 7mm
- Available colour: Silver Anodised
