BRAND: Raven
ORIGIN: Australia

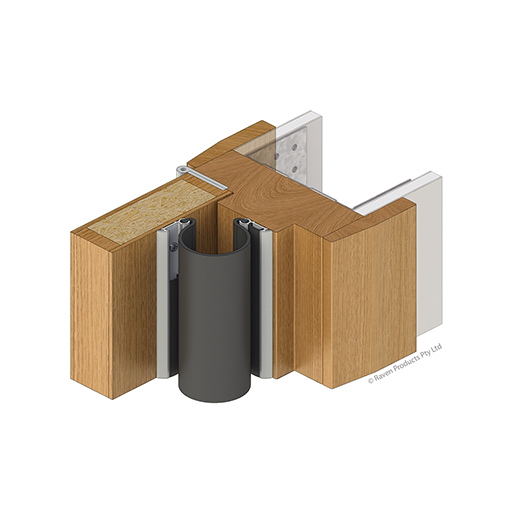

Introducing the Screw-Fixed Door Seal, recommended for securing the hinged side of doors and jambs. It's designed to provide maximum protection when fitted to the full height of the door or jamb. The seal includes zinc-plated screws with cross-recess heads and a cover strip, all supplied for installation. Pre-slotted fixing holes facilitate easy mounting on timber or aluminium door and frame constructions. Suitable for single and double inward/outward opening doors, as well as pivot doors, ensuring versatile and effective sealing solutions.

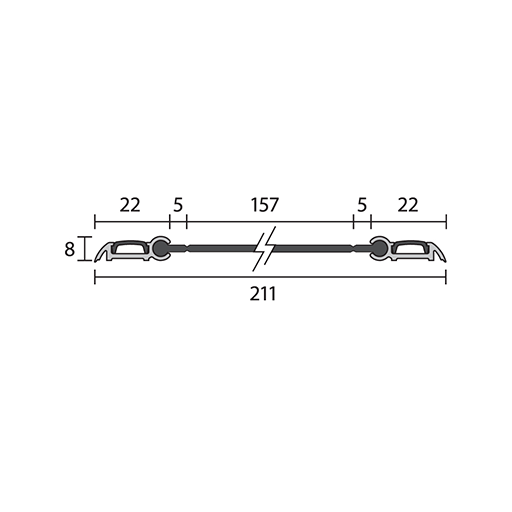

DIMENSIONS
- Length: 2100mm (can be butt-joined for longer lengths)
APPLICATION
Safety strip to prevent finger jamming on the hinge side of doors, suitable for 0-180 degree opening butt-hinged or center pivot doors.
MATERIAL
Anodised Aluminium with EPDM rubber strip
FEATURES
- Screw fixed to the door and jamb on the hinged side
- Recommended to fit full height of door/jamb for maximum protection
- Zinc plated, cross recess head S.T. screws and cover strip supplied
- Fixing holes are pre-slotted
- Suitable for timber or aluminium door/frame construction
- Suitable for single and double inward/outward opening, and pivot doors
ORIGIN: Australia
Introducing the Screw-Fixed Door Seal, recommended for securing the hinged side of doors and jambs. It's designed to provide maximum protection when fitted to the full height of the door or jamb. The seal includes zinc-plated screws with cross-recess heads and a cover strip, all supplied for installation. Pre-slotted fixing holes facilitate easy mounting on timber or aluminium door and frame constructions. Suitable for single and double inward/outward opening doors, as well as pivot doors, ensuring versatile and effective sealing solutions.
DIMENSIONS
- Length: 2100mm (can be butt-joined for longer lengths)
APPLICATION
Safety strip to prevent finger jamming on the hinge side of doors, suitable for 0-180 degree opening butt-hinged or center pivot doors.
MATERIAL
Anodised Aluminium with EPDM rubber strip
FEATURES
- Screw fixed to the door and jamb on the hinged side
- Recommended to fit full height of door/jamb for maximum protection
- Zinc plated, cross recess head S.T. screws and cover strip supplied
- Fixing holes are pre-slotted
- Suitable for timber or aluminium door/frame construction
- Suitable for single and double inward/outward opening, and pivot doors
| Brand | RAVEN |
