Brand: Blum
Origin: Austria
Application: Bi-fold for wooden fronts and aluminum frames, suitable for all particle boards, mdf, foam boards, chipboard, hdf and plywood, doors wider than 1000mm timber or plywood recomended
Sizing:
Load factor (cabinet height mm x combined front and handle weight)
HF-22 (2600-5500)
HF-25 (5350-10150)
HF-28 (9000-17250)
Package contains:

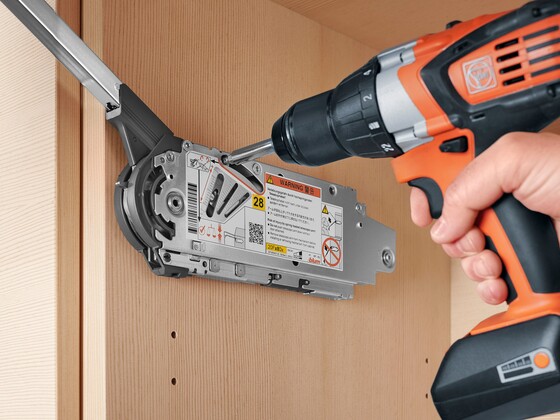

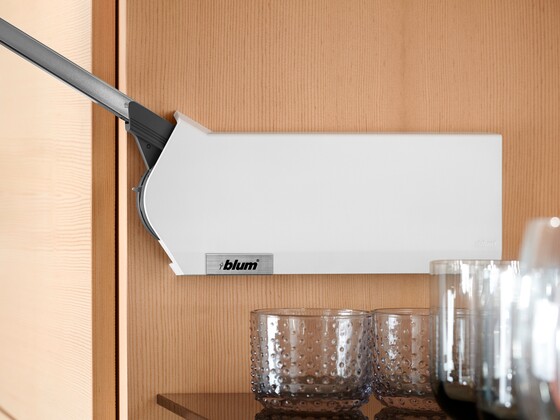

Lift mechanism x2
telescopic arm x2 (F3500, 560-710mm)
Cover cap left/ right x1
Stamped round logo x2
Screw on mounting plate x6
Unsprung centre hinge x2
Unsprung top hinge 120° x2
Hinge cover caps stamped x4
Opening angle stop 104°/83° (Purchased separately)
Extra centre hinge for door width >1000mm (Purchases separately)
Extra top hinge for door width >1000mm (Purchases separately)
Features:

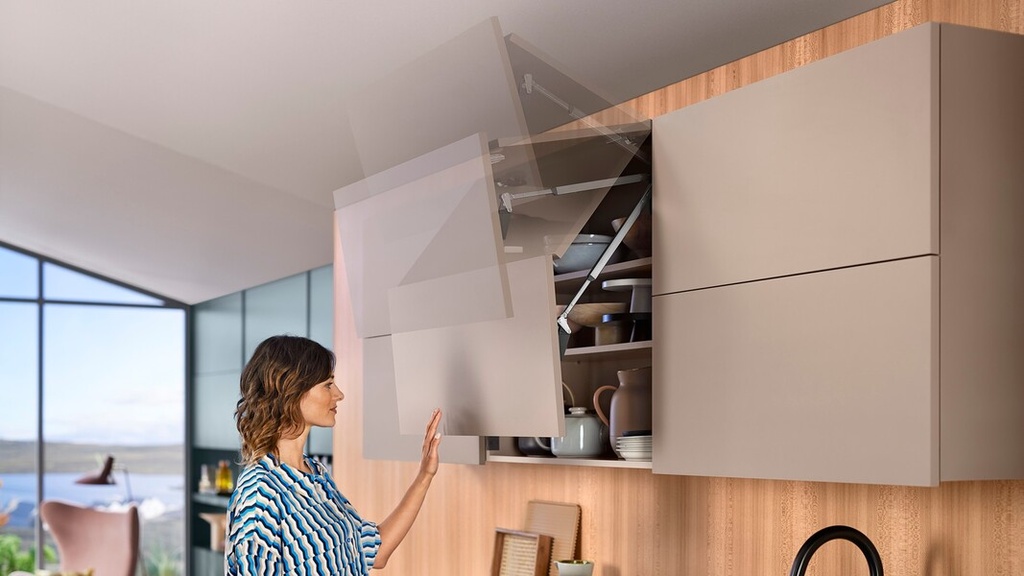

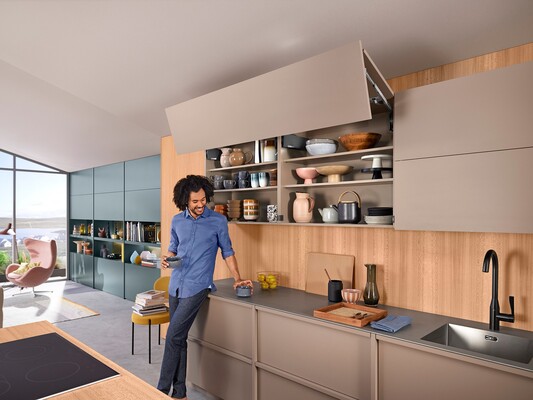

Ideal for wall cabinets with divided fronts
Suitable cabinet height 480-1040mm
Suitable cabinet width upto 1800mm (2 sets required)
Silent and effortless closing
Class leading Blu-motion technology
Variable stop feature
Robust spring package, excellent durability
No protruding parts
Feather light operating forces
3 dimensional adjustment for both fronts
Simple, infinitely variable lift mechanism
Suitable for servo drive electrical motion system
Centre hinge with finger safety feature
Easy assembly and adjustment
Origin: Austria
Application: Bi-fold for wooden fronts and aluminum frames, suitable for all particle boards, mdf, foam boards, chipboard, hdf and plywood, doors wider than 1000mm timber or plywood recomended
Sizing:
Load factor (cabinet height mm x combined front and handle weight)
HF-22 (2600-5500)
HF-25 (5350-10150)
HF-28 (9000-17250)
Package contains:
Lift mechanism x2
telescopic arm x2 (F3500, 560-710mm)
Cover cap left/ right x1
Stamped round logo x2
Screw on mounting plate x6
Unsprung centre hinge x2
Unsprung top hinge 120° x2
Hinge cover caps stamped x4
Opening angle stop 104°/83° (Purchased separately)
Extra centre hinge for door width >1000mm (Purchases separately)
Extra top hinge for door width >1000mm (Purchases separately)
Features:
Ideal for wall cabinets with divided fronts
Suitable cabinet height 480-1040mm
Suitable cabinet width upto 1800mm (2 sets required)
Silent and effortless closing
Class leading Blu-motion technology
Variable stop feature
Robust spring package, excellent durability
No protruding parts
Feather light operating forces
3 dimensional adjustment for both fronts
Simple, infinitely variable lift mechanism
Suitable for servo drive electrical motion system
Centre hinge with finger safety feature
Easy assembly and adjustment
| Power Factor | 22 or 25 or 28 |
| Brand | BLUM |
| Origin | Austria |
| Finish | White |
